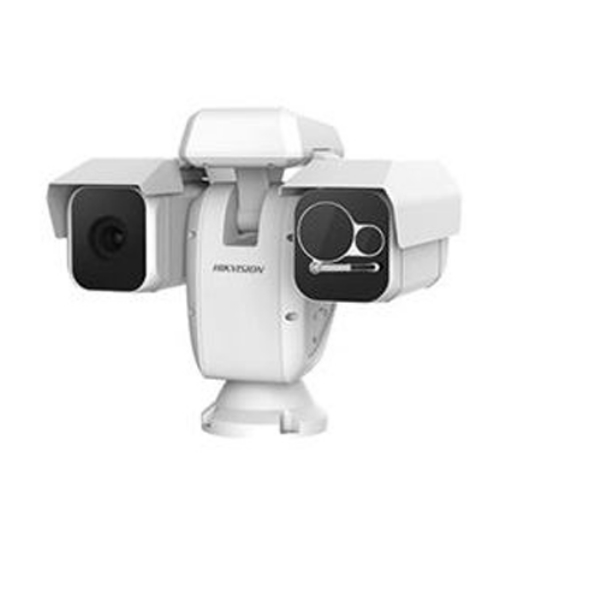

HIKVISION DS-2TD6266T-50H2L IP PTZ-Wärmebildkamera, IP66, 640x512, 50mm, 5,7-205,2mm, 12,42?, 58,7?

HIKVISION DS-2TD6266T-50H2L IP PTZ-Wärmebildkamera, IP66, 640x512, 50mm, 5,7-205,2mm, 12,42?, 58,7? Beschreibung: Features - 640 x 512 resolution, high sensitivity sensor, support contrast adjustment - Support shutter adjustment in various modes - 15 palettes of color adjustable, image detail enhancement - Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40 mk (@25?C, F# = 1.0) - Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking - Smart tracking linkage: thermal view and optical view - Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit - Reliable temperature exception alarm function - Advanced fire detection algorithm Technical Specification Thermal module -Image Sensor: Vanadium Oxide Uncooled Focal Plane Detectors - Max. Resolution: 640 x 512 - Detector Pitch 17 micrometer - Response Waveband: 8 ~ 14 micrometer - NETD: < 40 mk (@25?C, F# = 1.0) - Lens (Focus): 50 mm - MRAD 0.34 mrad - Field Angle: 12.42? ? 9.95? - Min. Focusing Distance 7.5 m - F number 1.0 Technical Specification Optical camera - Image Sensor 1/1.9" Progressive Scan CMOS - Min. Illumination Color: 0.002 lux @ (F1.5, AGC On ) B/W : 0.0002 lux @ (F1.5, AGC On ) - Focal Length 5.7-205.2 mm, 36x - Digital Zoom 16x - Field of View 58.7? - 2.0? (Wide-Tele) - Min. Working Distance 10-1500 mm (Wide-Tele) - Aperture Range F1.5-F4.5 - Focus Mode Auto / Semiautomatic / Manual - WDR 120 dB - Shutter Time PAL 1-1/30,000s - White Balance Auto / Manual / ATW / Indoor / Outdoor / Daylight lamp / Sodium lamp - Day & Night IR Cut Filter - Privacy Mask 24 privacy masks programmable; optional multiple colors and mosaics - Optical Defog Yes - Enhancement 3D DNR PTZ - Movement Range: Pan:?360??Continuous?Rotate; Tilt:?From?-90??to?+?40??(auto?flip) - Pan Speed: Configurable,?From?0.1??/s?to?110??/s - Tilt Speed: Configurable,?From?0.1??/s?to?50??/s - Proportional Zoom: Yes - Presets: 300 - Patrol Scan: 8;?Up?to?32?Presets?Per?Patrol - Pattern Scan: 4;?More?Than?10?Minutes?Per?Pattern - Power Off Memory: Yes - Park: Preset / Pattern?Scan / Patrol?Scan / Auto?Scan / Tilt?Scan / Random?Scan / Frame?Scan / Panorama?Scan - PT Status: Turn?On/Turn?Off - Scheduled Task: Preset / Pattern?Scan / Patrol?Scan / Auto?Scan / Tilt?Scan / Random?Scan / Frame?Scan / Panorama Scan / Doom?Reboot / Doom?Adjust / Aux?Output Infrared - IR Distance: Up?to?500 m - IR Intensity and Angle: Auto?Adjust Compression Standard - Main Stream: Optical light: 50 Hz: 25 fps (1920 ? 1080), 25 fps (1280 ? 960), 25 fps (1280 ? 720) Optical light: 60Hz: 30 fps (1920 ? 1080), 30 fps (1280 ? 960), 30 fps (1280? 720) Thermal: 50 fps (640 ? 512) - Sub Stream: 50 Hz: 25 fps (704 ? 576), 25 fps (352 ? 288), 25 fps (176 ? 144) 60 Hz: 30 fps (704 ? 480), 30 fps (352 ? 240), 30 fps (176 ? 120) Thermal: 50 fps (640 ? 512) - Video Compression: H.264 (Baseline / Main / High Profile) / MJPEG / MPEG4 - Audio Compression: G .711u / G.711a / G.722.1 / MP2L2 / G.726 / PCM - Simultaneous live view: Up?to?20-ch Interface - Alarm Input: 7-ch relay input (0-5 V/DC) - Alarm Output: 2-ch, support alarm linkage - Audio Input: LINE_IN Input/MIC Input; Peak: From 2-2.4 V [p-p], output impedance: 1 KOhm ?10 % - Audio Output: Line level, impedance: 600 Ohm General - Work temperature: -40 ?C to 60 ?C, - Work humidity: 90 % or less - Power: 24 V/AC, 120 W - Protection Level: IP66 Standard, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
